融合轻量级注意力机制的双分支入侵检测方法

doi:10.3969/j.issn.1671-1122.2026.08.002

摘要/Abstract

摘要：

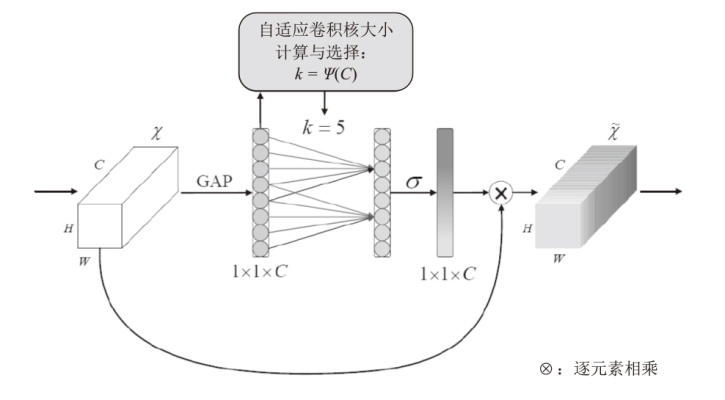

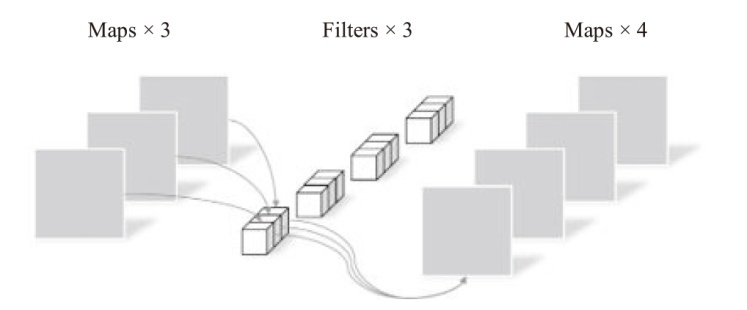

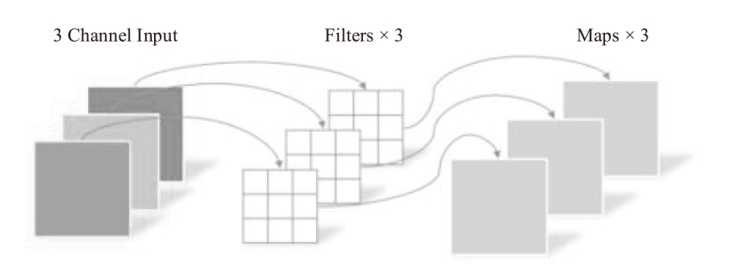

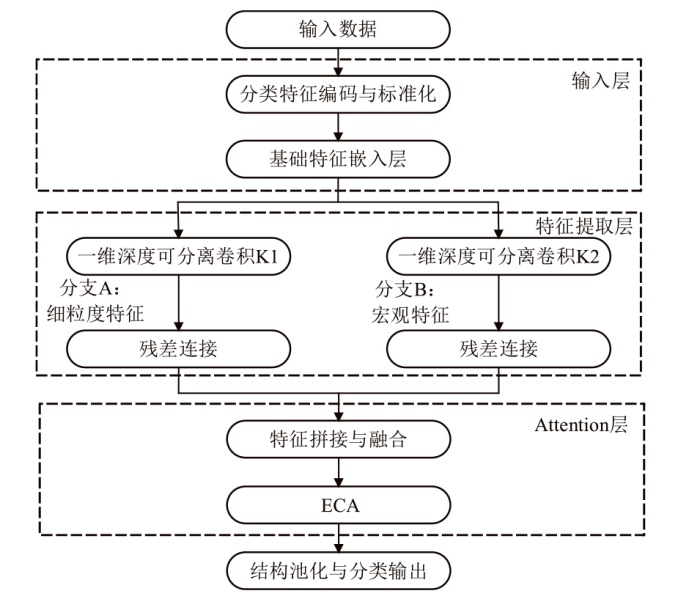

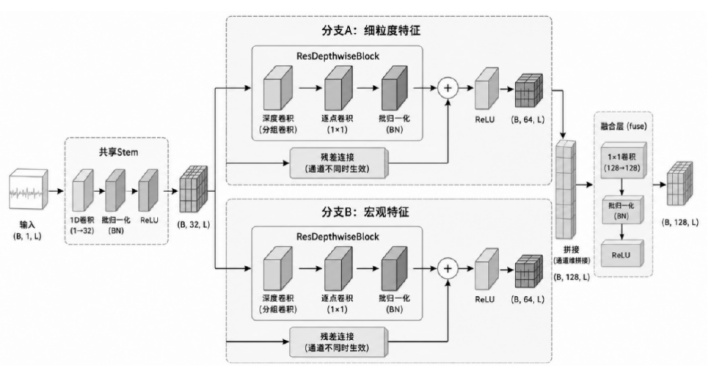

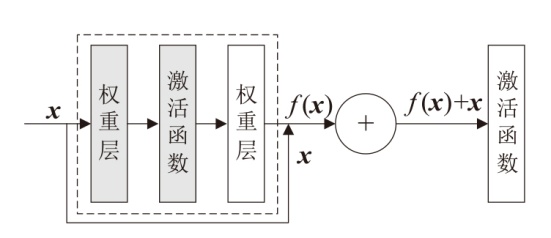

针对资源受限场景下入侵检测系统难以兼顾检测精度与计算效率的问题，文章提出一种融合轻量级注意力机制的双分支入侵检测方法。该方法以轻量化过程中的特征损失与多类攻击间的特征混叠为核心设计出发点，构建双分支-可分离卷积-高效注意力机制协同架构。双分支结构负责从网络流量中捕获多尺度特征，保障模型对复杂攻击行为的完整感知；深度可分离卷积大幅压缩参数量与计算复杂度，并引入残差网络连接补偿轻量化带来的特征退化；在特征融合阶段，轻量级通道注意力机制ECA对关键通道特征进行自适应增强，提升复杂攻击流量的区分能力。实验结果表明，该方法在各项指标上均优于基线对比模型，其中在UNSW-NB15数据集上准确率为89.69%，精确率为89.83%，并且F1分数为89.70%，较次优基线模型提升7.13个百分点，表明模型在精确率与召回率间取得了良好的平衡。模型参数量与一维卷积神经网络处于同一量级，验证了其在资源受限网络环境中的应用潜力。

关键词: 入侵检测, 深度学习, 注意力机制, 深度可分离卷积

Abstract:

To address the inherent trade-off between detection accuracy and computational efficiency in intrusion detection systems (IDS) deployed under resource-constrained environments, this paper proposed a dual-branch intrusion detection method integrated with a lightweight attention mechanism. Motivated by the feature degradation commonly caused by model compression and the inter-class confusion among heterogeneous attack types, a collaborative Dual-Branch-DSC-ECA architecture was constructed: a dual-branch structure captures multi-scale features from network traffic to ensure comprehensive perception of complex attack behaviors; depthwise separable convolutions substantially reduced parameter count and computational complexity, while residual connections compensate for representational loss caused by depthwise separable decomposition; at the feature fusion stage, the efficient channel attention (ECA) mechanism adaptively recalibrates channel-wise feature responses to enhance the model’s sensitivity to anomalous traffic patterns. Experimental results on the UNSW-NB15 dataset show that the proposed method outperforms all baseline models, achieving 89.69% accuracy, 89.83% precision; and an F1-score of 89.70%—a 7.13-percentage-point improvement over the second-best baseline—reflecting a well-balanced trade-off between precision and recall. With only 0.043M parameters, comparable to the 1D CNN model, the proposed method demonstrates its suitability for deployment in resource-constrained network environments.

Key words: intrusion detection, deep learning, attention mechanism, depthwise separable convolution

中图分类号:

TP309

金志刚, 李其睿, 丁禹. 融合轻量级注意力机制的双分支入侵检测方法[J]. 信息网络安全, 2026, 26(8): 1183-1193.

Jin Zhigang, Li Qirui, Ding Yu. A dual-branch intrusion detection method integrated with lightweight attention mechanism[J]. Netinfo Security, 2026, 26(8): 1183-1193.

图/表 13

图1

图2

图3

图4

图5

图6

表1

表2

表3

表4

表5

表6

图7

参考文献 26

[1]	邓淼磊, 阚雨培, 孙川川, 等. 基于深度学习的网络入侵检测系统综述[J]. 计算机应用, 2025, 45(2):453-466.
[2]	Sharma S, Gupta R K. Intrusion detection system: a review[J]. International Journal of Software and Its Applications, 2015, 9(5): 69-76.
[3]	Catania C, Garino P C. Automatic network intrusion detection: current techniques and open issues[J]. Computers & Electrical Engineering, 2012, 38(5): 1062-1072.
[4]	Liao H J, Lin C H R, Lin Y C, et al. Intrusion detection system: a comprehensive review[J]. Journal of Network and Computer Applications, 2013, 36(1): 16-24.
[5]	Sabhnani M, Serpen G. Application of machine learning algorithms to KDD intrusion detection dataset within misuse detection context[C]// The 2003 International Conference on Machine Learning and Applications (ICMLA). Las Vegas: CSREA Press, 2003: 209-215.
[6]	Vinayakumar R, Alazab M, Soman K P, et al. Deep learning approach for intelligent intrusion detection system[J]. IEEE Access, 2019, 7: 41525-41550.
[7]	蹇诗婕, 卢志刚, 杜丹, 等. 网络入侵检测技术综述[J]. 信息安全学报, 2020, 5(4):96-122.
[8]	Lecun Y, Boser B, Denker J S, et al. Backpropagation applied to handwritten zip code recognition[J]. Neural Computation, 1989, 1(4): 541-551.
[9]	Hochreiter S, Schmidhuber J. Long short-term memory[J]. Neural Computation, 1997, 9(8): 1735-1780.
[10]	Rumelhart D E, Hinton G E, Williams R J. Learning representations by back-propagating errors[J]. Nature, 1986, 323: 533-536.
[11]	张志强, 暴亚东. 融合RF和CNN的异常流量检测算法[J]. 信息网络安全, 2024, 24(11):1655-1664.
[12]	孙红哲, 王坚, 王鹏, 等. 基于Attention-BiTCN的网络入侵检测方法[J]. 信息网络安全, 2024, 24(2):309-318.
[13]	刘联海, 黎汇业, 毛冬晖. 基于图像凸包特征的CBAM-CNN网络入侵检测方法[J]. 信息网络安全, 2024, 24(9):1422-1431.
[14]	Biyouki A, Lotfipour S, Haghi B. An enhanced deep learning framework for intrusion classification enterprise network using multi-branch CNN-attention architecture[J]. Scientific Reports, 2026, 16: 3962.
[15]	Zavvar M, Azar K K, Entezami M, et al. A hybrid intrusion detection method based on multi-convolutional neural networks fusion and grey wolf optimizer[J]. Journal of Cloud Computing, 2026, 15: 77.
[16]	张志飞, 刘峰, 葛祎阳, 等. 一种基于深度可分离卷积和注意力机制的入侵检测方法[J]. 物联网学报, 2023, 7(1):49-59.
[17]	Jouhari M, Guizani M. Lightweight CNN-BiLSTM based intrusion detection systems for resource-constrained IoT devices[C]// The 20th IEEE International Wireless Communications and Mobile Computing Conference (IWCMC 2024). New York: IEEE, 2024: 1558-1563.
[18]	杨毅铭, 陈世平. 不平衡数据下面向包粒度应用层负载的轻量化入侵检测模型[J]. 小型微型计算机系统, 2025, 46(2):465-473.
[19]	Howard A G, Zhu Menglong, Chen Bo, et al. MobileNets: efficient convolutional neural networks for mobile vision applications[C]// The IEEE Conference on Computer Vision and Pattern Recognition (CVPR). New York: IEEE, 2017: 1800-1807.
[20]	Chollet F. Xception: deep learning with depthwise separable convolutions[C]// The IEEE Conference on Computer Vision and Pattern Recognition (CVPR). New York: IEEE, 2017: 1251-1258.
[21]	He Kaiming, Zhang Xiangyu, Ren Shaoqing, et al. Deep residual learning for image recognition[C]// The IEEE Conference on Computer Vision and Pattern Recognition (CVPR). New York: IEEE, 2016: 770-778.
[22]	Wang Qilong, Wu Banggu, Zhu Pengfei, et al. ECA-Net: efficient channel attention for deep convolutional neural networks[C]// 2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR). New York: IEEE, 2020: 11531-11539.
[23]	Hu Jie, Shen Li, Sun Gang. Squeeze-and-excitation networks[C]// The IEEE Conference on Computer Vision and Pattern Recognition (CVPR). New York: IEEE, 2018: 7132-7141.
[24]	Woo S, Park J, Lee J Y, et al. CBAM: convolutional block attention module[C]// The European Conference on Computer Vision (ECCV). Heidelberg: Springer, 2018: 3-19.
[25]	Moustafa N, Slay J. UNSW-NB15: a comprehensive data set for network intrusion detection systems[C]// 2015 Military Communications and Information Systems Conference (MilCIS). New York: IEEE, 2015: 1-6.
[26]	Sharafaldin I, Lashkari A H, Ghorbani A A. Toward generating a new intrusion detection dataset and intrusion traffic characterization[C]// The 4th International Conference on Information Systems Security and Privacy (ICISSP). Setubal: SciTePress, 2018: 108-116.

参数名称	参数设置
ECA通道数	128
特征融合卷积核	1
DSC核大小	3 & 5
损失函数	CrossEntropyLoss
激活函数	ReLU
优化器	Adam
自适应池化	$4\times 4$
批量大小	64
训练轮数/轮	20
学习率	0.001
Dropout	0.3

标签	类别	训练集/条	测试集/条
0	Normal	20000	20000
1	Generic	4181	3418
2	Exploits	5000	5000
3	Fuzzers	5000	4810
4	DoS	3806	1694
5	Reconnaissance	5000	2469
6	Analysis	1594	438
7	Backdoor	1535	345
8	Shellcode	1091	365
9	Worms	127	44
总计	—	47334	38583

序号	流量类别	数量/条
0	Normal	49954
1	DDoS	20000
2	DoS	20000
3	Probe	20000
4	Other	9197
5	Web Attack	2143
6	Bot	1948

模型	数据集	准确率	精确率	召回率	F1分数
LSTM	UNSW-NB15	81.36%	85.53%	81.95%	80.93%
LSTM	CIC-IDS-2017	95.12%	94.38%	91.87%	92.74%
RNN	UNSW-NB15	81.69%	85.96%	82.29%	81.26%
RNN	CIC-IDS-2017	94.67%	93.85%	91.43%	91.96%
1D CNN	UNSW-NB15	82.13%	86.10%	82.71%	81.76%
1D CNN	CIC-IDS-2017	96.84%	95.76%	93.21%	94.05%
CBAM + CNN	UNSW-NB15	82.88%	86.41%	83.42%	82.57%
CBAM + CNN	CIC-IDS-2017	97.53%	97.11%	94.69%	95.88%
本文模型	UNSW-NB15	89.69%	89.83%	89.78%	89.70%
本文模型	CIC-IDS-2017	99.14%	98.22%	97.63%	98.45%

模型	准确率	精确率	召回率	F1分数
本文模型	89.69%	89.83%	89.78%	89.70%
双分支DSC	86.72%	87.92%	87.02%	86.67%
1D CNN+ECA	82.77%	86.59%	83.32%	82.43%
