网络靶场研究进展

doi:10.3969/j.issn.1671-1122.2026.03.002

摘要/Abstract

摘要：

网络靶场作为网络空间安全研究的核心实验平台，通过构建可控、可复现的虚拟化攻防环境，为安全技术验证、人才培养及攻防演练提供了关键支撑。文章系统梳理了网络靶场的发展脉络，从美国NCR、欧洲CRF到日本StarBED，展现了从单一功能平台向联邦协同架构的演进历程，同时阐述了国内网络靶场从技术验证到协同创新的跨越式发展路径。在技术架构方面，网络靶场呈现多层级体系特征，涵盖基础设施层、虚拟化层、容器层等核心组件，通过虚拟化与仿真技术实现高保真环境构建。关键技术聚焦于场景生成与对抗、跨域协同及自动化评估3大方向，形成了完整的技术支撑体系。研究表明，网络靶场已从静态仿真容器升级为动态能力生成平台，应用场景拓展至联邦态势感知、供应链安全溯源等领域。

关键词: 网络空间安全, 网络靶场, 网络仿真, 技术架构

Abstract:

Cyber ranges serve as fundamental experimental platforms for cybersecurity research. They provide critical support for security technology validation, professional training, and attack-defense exercises by establishing controlled, reproducible, and virtualized environments. This paper traced the development trajectory of cyber ranges. It begined with early platforms such as the U.S. national cyber range (NCR), Europe’s cyber range federation (CRF), and Japan’s StarBED, illustrating an evolution from isolated, single-function testbeds to collaborative, federated architectures. The analysis further examined the rapid progression within China, highlighting a shift from fundamental technology verification towards integrated, collaborative innovation. Regarding technical architecture, modern cyber ranges demonstrated a multi-layered structure. Core components, including the infrastructure, virtualization, and container layers, leverage advanced virtualization and simulation techniques to construct high-fidelity environments. Key enabling technologies concentrated on three principal areas: automated scenario generation and adversarial interaction, cross-domain coordination, and standardized automated evaluation, collectively forming a robust and comprehensive technological framework. This review concluded that cyber ranges have transformed from static simulation containers into dynamic platforms for capability generation. Consequently, their application has broadened into advanced domains such as federated situational awareness and supply chain security provenance.

Key words: cyberspace security, cyber ranges, network simulation, technology architecture

中图分类号:

TP309

李馥娟, 王群. 网络靶场研究进展[J]. 信息网络安全, 2026, 26(3): 355-366.

LI Fujuan, WANG Qun. Research Progress of Cyber Ranges[J]. Netinfo Security, 2026, 26(3): 355-366.

图/表 5

表1

表2

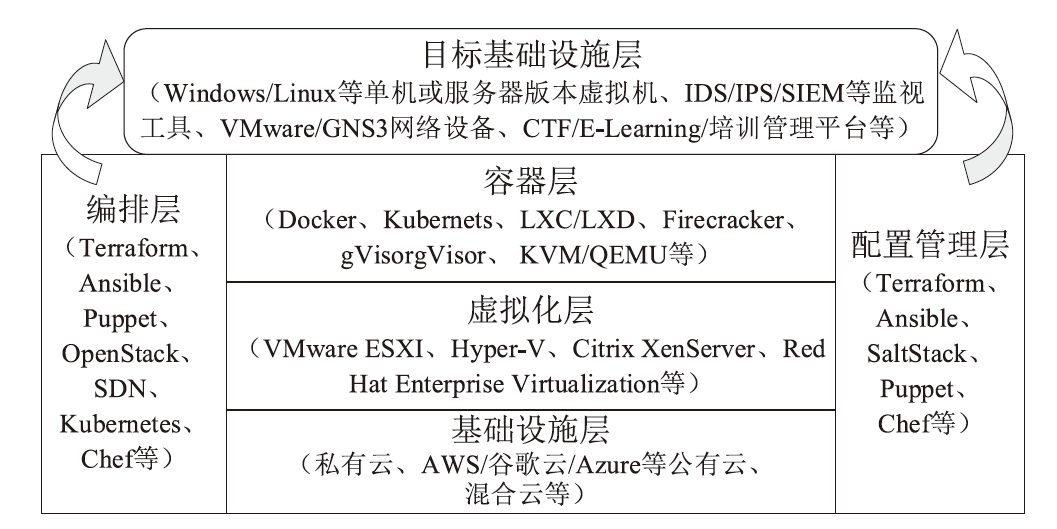

图1

表3

表4

参考文献 65

[1]	LI Qiuxiang, HAO Wenjiang, LI Cuicui, et al. Present Situation and Enlightenment of the Foreign Network Range Technology[J]. Netinfo Security, 2014, 14(9): 63-68.
	李秋香, 郝文江, 李翠翠, 等. 国外网络靶场技术现状及启示[J]. 信息网络安全, 2014, 14(9): 63-68.
[2]	LI Fujuan, WANG Qun. Research on Cyber Ranges and Its Key Technologies[J]. Computer Engineering and Applications, 2022, 58(5): 12-22. doi: 10.3778/j.issn.1002-8331.2109-0137
	李馥娟, 王群. 网络靶场及其关键技术研究[J]. 计算机工程与应用, 2022, 58(5): 12-22. doi: 10.3778/j.issn.1002-8331.2109-0137
[3]	FERGUSON B, TALL A, OLSEN D. National Cyber Range Overview[C]// IEEE. 2014 IEEE Military Communications Conference. New York: IEEE, 2014: 123-128.
[4]	FANG Binxing. Improving Cyberspace Security Situation from Perspective of “Talent, Finance and Infrastructure”[J]. Bulletin of Chinese Academy of Sciences, 2022, 37(1): 53-59.
	方滨兴. 从“人、财、物”视角出发,提升网络空间的安全态势[J]. 中国科学院院刊, 2022, 37(1): 53-59.
[5]	ZHANG Jiawei, LI Zongzhe, CHEN Rui, et al. A Survey of Cyber Range: Current Status, Analysis, and Future Trends[C]// Springer. Network Simulation and Evaluation. Heidelberg: Springer, 2024: 88-101.
[6]	YAMIN M M, KATT B, GKIOULOS V. Cyber Ranges and Security Testbeds: Scenarios, Functions, Tools and Architecture[EB/OL]. (2019-10-07)[2025-07-09]. https://doi.org/10.1016/j.cose.2019.101636.
[7]	LINARDOS V. Development of a Cyber Range Platform[D]. Piraeus: University of Piraeus, 2021.
[8]	STAMATOPOULOS D, KATSANTONIS M, FOULIRAS P, et al. Exploring the Architectural Composition of Cyber Ranges: A Systematic Review[EB/OL]. (2024-06-28)[2025-07-09]. https://doi.org/10.3390/fi16070231.
[9]	NIST. Cyber Ranges[EB/OL]. (2018-02-13)[2025-07-09]. https://www.nist.gov/system/files/documents/2018/02/13/cyber_ranges.pdf.
[10]	ECSO. Understanding Cyber Ranges: From Hype to Reality[EB/OL]. (2020-03-01)[2025-07-09]. https://ecs-org.eu/ecso-uploads/2023/05/2020_SWG-5.1_paper_UnderstandingCyberRanges_final_v1.0-update.pdf.
[11]	LILLEMETS P, BASHIR J N, KASHI J, et al. A Systematic Review of Cyber Range Taxonomies: Trends, Gaps, and a Proposed Taxonomy[EB/OL]. (2025-05-05)[2025-07-09]. https://doi.org/10.3390/fi17060259.
[12]	CHOULIARAS N, KITTES G, KANTZAVELOU I, et al. Cyber Ranges and TestBeds for Education, Training, and Research[EB/OL]. (2021-02-18)[2025-07-09]. https://doi.org/10.3390/app11041809.
[13]	KATSANTONIS M N, MANIKAS A, MAVRIDIS I, et al. Cyber Range Design Framework for Cyber Security Education and Training[J]. International Journal of Information Security, 2023, 22(4): 1005-1027. doi: 10.1007/s10207-023-00680-4
[14]	CIUPERCA E, STANCIU A, CÎRNU C. Postmodern Education and Technological Development. Cyber Range as a Tool for Developing Cyber Security Skills[J]. INTED 2021 Proceedings, 2021, 1: 8241-8246.
[15]	PARK M, LEE H, KIM Y, et al. Design and Implementation of Multi-Cyber Range for Cyber Training and Testing[EB/OL]. (2022-12-07)[2025-07-09]. https://doi.org/10.3390/app122412546.
[16]	YAMIN M M, KATT B. Use of Cyber Attack and Defense Agents in Cyber Ranges: A Case Study[EB/OL]. (2022-08-27)[2025-07-09]. https://doi.org/10.1016/j.cose.2022.102892.
[17]	SISODIYA D S, TIWARI R, JAIN P, et al. An AI-Based Cyber Ranges to Strengthen the Cybersecurity of Cyber Physical Systems[J]. Journal of Applied Security Research, 2025, 20(4): 473-505. doi: 10.1080/19361610.2025.2518383 URL
[18]	HANNAY J E, STOLPE A, YAMIN M M. Toward AI-Based Scenario Management for Cyber Range Training[EB/OL]. (2021-11-11)[2025-07-09]. https://link.springer.com/chapter/10.1007/978-3-030-90963-5_32.
[19]	STROM B E, APPLEBAUM A, MILLER D P, et al. Mitre ATT&CK:Design and Philosophy[EB/OL]. (2020-03-01)[2025-07-09]. https://www.mitre.org/sites/default/files/2021-11/prs-19-01075-28-mitre-attack-design-and-philosophy.pdf.
[20]	LU Chao, LYU Jiafei, ZHANG Liming, et al. Nuclear Power Plants with Artificial Intelligence in Industry 4.0 Era: Top-Level Design and Current Applications—A Systemic Review[J]. IEEE Access, 2020, 8: 194315-194332. doi: 10.1109/ACCESS.2020.3032529 URL
[21]	ZHOU Haifeng, LI Mohan, SUN Yanbin, et al. Digital Twin-Based Cyber Range for Industrial Internet of Things[J]. IEEE Consumer Electronics Magazine, 2023, 12(6): 66-77.
[22]	EDA. Cyber Ranges Federation Project Reaches New Milestone[EB/OL]. (2018-09-13)[2025-07-09]. https://eda.europa.eu/news-and-events/news/2018/09/13/cyber-ranges-federation-project-reaches-new-milestone.
[23]	DIAKOUMAKOS J, CHASKOS E, KOLOKOTRONIS N, et al. Cyber-Range Federation and Cyber-Security Games: A Gamification Scoring Model[C]// IEEE. 2021 IEEE International Conference on Cyber Security and Resilience (CSR). New York: IEEE, 2021: 186-191.
[24]	NICT. StarBED Equipment[EB/OL]. [2025-07-09]. https://starbed.nict.go.jp/en/equipment/index.html.
[25]	LATEȘ I, BOJA C. Cyber Range Technology Stack Review[EB/OL]. (2023-01-01)[2025-07-09]. https://doi.org/10.1007/978-981-19-6755-9_3.
[26]	LEITNER M, FRANK M, HOTWAGNER W, et al. AIT Cyber Range: Flexible Cyber Security Environment for Exercises, Training and Research[C]// ACM. The European Interdisciplinary Cybersecurity Conference. New York: ACM, 2020: 1-6.
[27]	BICA I, UNC R L, ȚURCANU Ș. Virtualization and Automation for Cybersecurity Training and Experimentation[EB/OL]. (2021-02-04)[2025-07-09]. https://doi.org/10.1007/978-3-030-69255-1_15.
[28]	BALTO K E, YAMIN M M, SHALAGINOV A, et al. Hybrid IoT Cyber Range[EB/OL]. (2023-03-13)[2025-07-09]. https://doi.org/10.3390/s23063071.
[29]	BLAGOEV I, SHALAMANOV V. Development of Cyber Ranges as a Reference Environment for Digital Transformation[C]// IEEE. 2023 4th International Conference on Communications, Information, Electronic and Energy Systems (CIEES). New York: IEEE, 2023: 1-5.
[30]	FU Yongquan, HAN Weihong, YUAN Dong. Disentangled Orchestration on Cyber Ranges[J]. IEEE Transactions on Dependable and Secure Computing, 2024, 21(4): 2344-2360. doi: 10.1109/TDSC.2023.3303888 URL
[31]	ZOU Xing, HU Ning. Cyber-Range: The Scientific Infrastructure for Cyberspace Security Research[C]// IEEE. 2024 IEEE 9th International Conference on Data Science in Cyberspace (DSC). New York: IEEE, 2024: 188-195.
[32]	UKWANDU E, BEN FARAH M A, HINDY H, et al. A Review of Cyber-Ranges and Test-Beds: Current and Future Trends[EB/OL]. (2020-12-13)[2025-07-09]. https://doi.org/10.3390/s20247148.
[33]	KIM I, PARK M, LEE H J, et al. A Study on the Multi-Cyber Range Application of Mission-Based Cybersecurity Testing and Evaluation in Association with the Risk Management Framework[EB/OL]. (2023-12-28)[2025-07-09]. https://www.mdpi.com/2078-2489/15/1/18.
[34]	ZHANG Jiawei, LI Zongzhe, CHEN Rui, et al. A Survey of Cyber Range: Current Status, Analysis, and Future Trends[EB/OL]. (2024-08-02)[2025-07-09]. https://doi.org/10.1007/978-981-97-4522-7_6.
[35]	REBECCHI F, PASTOR A, MOZO A, et al. A Digital Twin for the 5G Era: The SPIDER Cyber Range[C]// IEEE. 2022 IEEE 23rd International Symposium on a World of Wireless, Mobile and Multimedia Networks (WoWMoM). New York: IEEE, 2022: 567-572.
[36]	ANGELOGIANNI A, POLITIS I, POLVANESI P L, et al. Unveiling the User Requirements of a Cyber Range for 5G Security Testing and Training[C]// IEEE. 2021 IEEE 26th International Workshop on Computer Aided Modeling and Design of Communication Links and Networks (CAMAD). New York: IEEE, 2021: 1-6.
[37]	TIWARI P, VITTAL S, ANTONY A. Sharding the Datastore Network Functions of 5G Core for Scalable and Resilient Slice Service[C]// IEEE. 2024 IEEE 10th International Conference on Network Softwarization (NetSoft). New York: IEEE, 2024: 331-335.
[38]	BU Youjun, CHEN Ruilong, ZHOU Kun, et al. Design and Implementation of Endogenous Security Cyber Range Based on Digital Twin Technology[C]// IEEE. 2024 Asia-Pacific Conference on Image Processing, Electronics and Computers (IPEC). New York: IEEE, 2024: 587-593.
[39]	GROSHEV M, GUIMARÃES C, MARTÍN-PÉREZ J, et al. Toward Intelligent Cyber-Physical Systems: Digital Twin Meets Artificial Intelligence[J]. IEEE Communications Magazine, 2021, 59(8): 14-20.
[40]	NAKAJIMA J, LIN Qian, YANG Sheng, et al. Optimizing Virtual Machines Using Hybrid Virtualization[C]// ACM. The 2011 ACM Symposium on Applied Computing. New York: ACM, 2011: 573-578.
[41]	DAUGHETY N, PENDLETON M, XU Shouhuai, et al. VCDS: A Virtualized Cross Domain Solution Architecture[C]// IEEE. 2021 IEEE Military Communications Conference (MILCOM). New York: IEEE, 2021: 61-68.
[42]	EL-MAGHRABY R T, ABD E N M, BAHAA-ELDIN A M. A Survey on Deep Packet Inspection[C]// IEEE. 2017 12th International Conference on Computer Engineering and Systems (ICCES). New York: IEEE, 2017: 188-197.
[43]	NAIR S S, SANTHA T. High Availability of Kernel-Based Virtual Machine Using Nested Virtualization[EB/OL]. (2023-02-15)[2025-07-09]. https://doi.org/10.1016/j.measen.2023.100712.
[44]	GOODFELLOW I, POUGET-ABADIE J, MIRZA M, et al. Generative Adversarial Networks[J]. Communications of the ACM, 2020, 63(11): 139-144. doi: 10.1145/3422622 URL
[45]	CHEN Daowei, YAN Hongsheng. Research on APT Groups Malware Classification Based on TCN-GAN[EB/OL]. (2025-06-10)[2025-07-09]. https://doi.org/10.1371/journal.pone.0323377.
[46]	ARIFIN M M, AHMED M S, GHOSH T K, et al. A Survey on the Application of Generative Adversarial Networks in Cybersecurity: Prospective, Direction and Open Research Scopes[EB/OL]. (2024-09-20)[2025-07-09]. https://doi.org/10.48550/arXiv.2407.08839.
[47]	MOGHADDAM P S, VAZIRI A, KHATAMI S S, et al. Generative Adversarial and Transformer Network Synergy for Robust Intrusion Detection in IoT Environments[J]. Future Internet, 2025, 17(6): 1-36. doi: 10.3390/fi17010001 URL
[48]	ZEESHAN M, MAASOOMA. Trans-GAN: A Deep Learning Paradigm for Multi-Type Anomaly Detection in Network Traffic[C]// IEEE. 2024 International Conference on Frontiers of Information Technology (FIT). New York: IEEE, 2024: 1-6.
[49]	SUTTON R S, MCALLESTER D, SINGH S, et al. Policy Gradient Methods for Reinforcement Learning with Function Approximation[C]// MIT. The 12th International Conference on Neural Information Processing Systems. Cambridge: MIT, 1999: 1057-1063.
[50]	SANTORSOLA A, MIGLIAU A, CAPOR U S. Reinforcement Learning Agents for Simulating Normal and Malicious Actions in Cyber Range Scenarios[EB/OL]. [2025-07-09]. https://www.cybersuite.it/wp-content/uploads/2024/03/paper1.pdf.
[51]	ARORA S, DOSHI P. A Survey of Inverse Reinforcement Learning: Challenges, Methods and Progress[EB/OL]. (2021-03-24)[2025-07-09]. https://doi.org/10.1016/j.artint.2021.103500.
[52]	IBRAHIM M, ELHAFIZ R, AL-WADI A. Reinforcement Learning-Based Attack Graph Analysis for Wastewater Treatment Plant[J]. IEEE Transactions on Industry Applications, 2023, 59(6): 7858-7867. doi: 10.1109/TIA.2023.3298289 URL
[53]	LITTMAN M L. A Tutorial on Partially Observable Markov Decision Processes[J]. Journal of Mathematical Psychology, 2009, 53(3): 119-125. doi: 10.1016/j.jmp.2009.01.005 URL
[54]	MODI A, SUN Zhibo, PANWAR A, et al. Towards Automated Threat Intelligence Fusion[C]// IEEE. 2016 IEEE 2nd International Conference on Collaboration and Internet Computing (CIC). New York: IEEE, 2016: 408-416.
[55]	DHABLIYA D, KHETANI V, GANDHI Y, et al. Threat Intelligence Fusion with AI and Machine Learning[EB/OL]. (2025-06-20)[2025-07-09]. https://doi.org/10.1007/9.
[56]	BENZEKKI K, EL F A, ELBELRHITI E A. Software-Defined Networking (SDN): A Survey[J]. Security and Communication Networks, 2016, 9(18): 5803-5833. doi: 10.1002/sec.v9.18 URL
[57]	MAHALINGAM M, DUTT D, DUDA K, et al. Virtual Extensible Local Area Network (VXLAN): A Framework for Overlaying Virtualized Layer 2 Networks over Layer 3 Networks[EB/OL]. (2014-08-01)[2025-07-09]. https://www.rfc-editor.org/rfc/rfc7348.html.
[58]	NGO BILONG J R, BA M, KACHALLAH A M, et al. Eco-Efficient SDN-VXLAN Architecture for Multi-Tenant Datacenters: Isolation, Automation and Resource Optimization[C]// IEEE. 2025 3rd International Conference on Sustainable Computing and Data Communication Systems (ICSCDS). New York: IEEE, 2025: 567-573.
[59]	Canadian Centre for Cyber Security. National Cyber Threat Assessment 2025-2026[EB/OL]. [2025-07-09]. https://www.cyber.gc.ca/sites/default/files/national-cyber-threat-assessment-2025-2026-e.pdf.
[60]	DESJARDINS R. Overview and Status of the ISO Reference Model of Open Systems Interconnection[J]. ACM SIGCOMM Computer Communication Review, 1981, 11(2): 10-14.
[61]	FUNK M, HOSEMANN S, JUNG J C, et al. Towards Ontology Construction with Language Models[EB/OL]. (2023-09-18)[2025-07-09]. https://doi.org/10.48550/arXiv.2309.09898.
[62]	KANAKOGI K, WASHIZAKI H, FUKAZAWA Y, et al. Tracing CVE Vulnerability Information to CAPEC Attack Patterns Using Natural Language Processing Techniques[EB/OL]. (2021-07-26)[2025-07-09]. https://doi.org/10.3390/info12080298.
[63]	LAHAT D, ADALI T, JUTTEN C. Multimodal Data Fusion: An Overview of Methods, Challenges, and Prospects[J]. Proceedings of the IEEE, 2015, 103(9): 1449-1477. doi: 10.1109/JPROC.2015.2460697 URL
[64]	ZHAO Dongmei, WU Yaxing, ZHANG Hongbin. A Situation Awareness Approach for Network Security Using the Fusion Model[EB/OL]. (2022-08-21)[2025-07-09]. https://doi.org/10.1155/2022/6214738.
[65]	CHENG Jie, ZHANG Ru, TIAN Siyuan, et al. Fusion of Traffic Data and Alert Log Based on Sensitive Information[EB/OL]. (2022-07-13)[2025-07-09]. https://link.springer.com/chapter/10.1007/978-981-19-2456-9_9.

名称	启用时间	主导模式	核心技术	关键能力	规模指标	创新特点
美国NCR	2008年	政府主导、军民融合	联邦学习、数字孪生	网络武器测试、作战训练	多节点互联综合体	自动化评估体系
欧洲CRF	2013年(CD TEXP)	多国协同、区域合作	联邦学习、动态蜜网	跨国防务演练、关基防护	万级虚拟节点	CRF成熟度模型
日本StarBED	2002年	研发机构主导、产学研结合	时序精确仿真、SDN/NFV	协议验证、设备测试	大规模拓扑模拟	量子安全测试
中国鹏城靶场	2009年	国家队引领、生态共建	联邦学习、快速组网	实战演练、人才培养	百万节点级仿真	联邦靶场生态

功能	描述
网络安全人才培养	通过场景化实战训练，提升岗位匹配度，弥补技能短板，缓解人才缺口
赋能技能迭代	依托动态训练模块，支持安全人员持续学习前沿防御策略与新型攻防技术
构建隔离的实验环境	基于虚拟化与网络隔离技术，提供可复用、安全可控的实验空间，避免影响真实系统
事件响应能力建设	模拟多种网络安全事件场景，强化预案执行与标准化操作，提升实战响应能力
紧跟威胁演化态势	实时同步新兴威胁情报与技术，帮助安全人员动态更新知识体系，做好前瞻准备
支撑精准化绩效评估	通过量化指标与多维度反馈，科学评估安全能力，定位薄弱环节，优化培训效果
模拟实战化技能训练	在隔离环境中复现真实攻击场景，积累实战经验，提升应对真实威胁的能力
专业技能培养	围绕威胁检测、防御部署、应急处置等环节，打磨专项技能与动态防御能力
培养团队协作能力	在复杂攻击场景中提供跨角色协同演练平台，提升团队信息共享与整体响应效率
赋能技术研发与验证	提供测试环境，支持安全工具与防护方案的研发、评估与持续优化

类型	关键技术	主要功能	典型应用
教育训练型靶场	动态场景构建：基于模块化与漏洞库，支持从基础漏洞到APT攻击的灵活编排；能力量化评估：通过行为与图推理算法，实现多阶能力的自动化评测	构建基础、进阶、高阶三级培养体系，集成微课、虚拟演练、CTF等模块，支持教学管理与智能纠错	高校实验平台、企业认证体系，用于实操能力考核
竞赛竞技型靶场	零信任隔离：通过覆盖网络与微分段实现多租户攻击域隔离；动态评分引擎：基于ATT&CK框架与防御效能量化，支持多模式切换	可信保障：区块链存证与反作弊引擎；动态对抗：攻击流量自适应生成	国际/国家级赛事、新兴威胁演练平台
科研实验型靶场	数字孪生：多模态网络仿真架构；威胁演化引擎：支持APT攻击链的动态建模	高精度控制：可编程网络损伤；深度可观测：全栈流量捕获与检测接口	军事仿真推演、攻击机理研究、新型威胁复现
行业应用型靶场	行业协议仿真：专用协议仿真引擎；业务影响模型：量化业务中断的经济损失与时间	业务逻辑集成：深度复现行业系统；高保真场景：模拟特有攻击向量	工控安全靶场（如电网）、金融核心系统验证平台

名称	技术定位	主要功能	主要角色	主要优势	面临挑战
边缘计算与5G网络集成	提供低时延、高带宽的网络与分布式算力	数据本地处理、网络切片、实时响应	为高实时性靶场提供通信与算力基础	延迟低、减轻核心网压力、提升场景真实感	初始成本高、技术集成复杂
数字孪生	构建物理实体的虚拟镜像，支持数据驱动的仿真与决策	高保真建模、攻防策略验证、过程可视化与评估	作为靶场核心仿真引擎，支撑场景复现与推演	全面的数字映射、支持复杂推演预测、可量化评估	建模精度与实时性难兼顾、多源数据融合难、对算力数据要求高
混合虚拟化架构	融合多种虚拟化技术，实现资源高效隔离与调度	动态算力卸载、多层次安全隔离、异构设备仿真	作为靶场资源管理基石，支撑异构环境灵活构建	性能与灵活性兼备、资源利用率高、弹性伸缩	跨层调度管理复杂、安全隔离策略设计难度大
