Supervised Restart-Based Cybersecurity Defense Strategy for Power Systems

doi:10.3969/j.issn.1671-1122.2025.06.006

Abstract

Abstract:

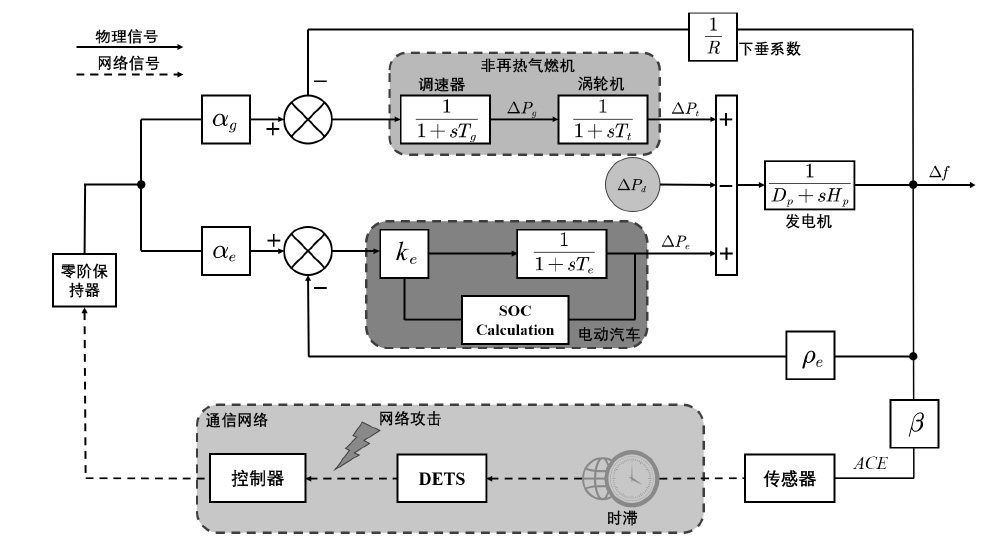

With the digital development of power systems, the monitoring and data acquisition networks in power systems bring network security risks. This paper study focused on the construction of an active defense strategy under denial-of-service (DoS) attacks in vehicle-to-grid power systems. Firstly, a load-frequency control strategy was constructed for the power system, and a dynamic event triggering scheme design was introduced to optimize the communication efficiency in order to reduce the network bandwidth consumption. Besieds, a supervised restart controller algorithm was proposed, which monitored the controller response in real time, and triggered the controller to restart dynamically when an abnormality was detected. Further, by constructing appropriate Lyapunov-Krasovskii functionals, the exponential stability criterion of the system under DoS attacks was derived, which provided a quantitative basis for the parameter design of the defense strategy. Finally, the effectiveness of the proposed scheme is verified by simulation experiment.

Key words: vehicle-to-grid power system, load frequency control, DoS attacks, Lyapunov functional, cybersecurity defense strategy

CLC Number:

TP309

SHI Kaibo, DING Jia, WANG Jun, CAI Xiao. Supervised Restart-Based Cybersecurity Defense Strategy for Power Systems[J]. Netinfo Security, 2025, 25(6): 910-919.

Figures/Tables 8

References 17

[1]	SHANGGUAN Xingchen, Sampled-Data-Based Load Frequency Control for Power Systems with Open Communication Networks in Loop[D]. Wuhan: China University of Geosciences, 2021.
	上官星辰. 面向开放通信网络在环电力系统的采样负荷频率控制研究[D]. 武汉: 中国地质大学, 2021.
[2]	ZHANG Xudong, Research on Load Frequency Control Method Based on Event-Triggered under DoS Attacks[D]. Changchun: Changchun University of Technology, 2022.
	张旭东. DoS攻击下基于事件触发的负荷频率控制方法研究[D]. 长春: 长春工业大学, 2022.
[3]	YANG Jin, ZHONG Qishui, SHI Kaibo, et al. Stability and Stabilization for T-S Fuzzy Load Frequency Control Power System with Energy Storage System[J]. IEEE Transactions on Fuzzy Systems, 2023, 32(3): 893-905.
[4]	WADI M, SHOBOLE A, ELMASRY W, et al. Load Frequency Control in Smart Grids: A Review of Recent Developments[EB/OL]. (2023-10-31)[2025-02-20]. https://www.sciencedirect.com/science/article/abs/pii/S1364032123008717.
[5]	CHEN Pengcheng, LIU Shichao, CHEN Bo, et al. Multi-Agent Reinforcement Learning for Decentralized Resilient Secondary Control of Energy Storage Systems against DoS Attacks[J]. IEEE Transactions on Smart Grid, 2022, 13(3): 1739-1750.
[6]	SHANGGUAN Xingchen, ZHANG Chuanke, HE Yong, et al. Robust Load Frequency Control for Power System Considering Transmission Delay and Sampling Period[J]. IEEE Transactions on Industrial Informatics, 2020, 17(8): 5292-5303.
[7]	ZHANG Xianming, HAN Qinglong, GE Xiaohua, et al. Resilient Control Design Based on a Sampled-Data Model for a Class of Networked Control Systems under Denial-of-Service Attacks[J]. IEEE Transactions on Cybernetics, 2019, 50(8): 3616-3626.
[8]	LI Wanqing, ZHU Li, LIU Xing’an, et al. Cybersecurity Protection Technologies for Critical Information Infrastructure in Hydropower Plants[J]. Netinfo Security, 2024, 24(12): 1955-1962.
	李万青, 朱丽, 刘兴安, 等. 水力发电站关键信息基础设施网络安全防护技术[J]. 信息网络安全, 2024, 24(12):1955-1962.
[9]	CAI Xiao, SHI Kaibo, SUN Yanbin, et al. Intelligent Event-Triggered Control Supervised by Mini-Batch Machine Learning and Data Compression Mechanism for TS Fuzzy NCSs under DoS Attacks[J]. IEEE Transactions on Fuzzy Systems, 2023, 32(3): 804-815.
[10]	XIE Ying, ZENG Zhu, HU Wei, et al. A False Data Injection Attack Detecting and Compensating Method[J]. Netinfo Security, 2023, 23(6): 22-33.
	谢盈, 曾竹, 胡巍, 等. 一种虚假数据注入攻击检测与补偿方法[J]. 信息网络安全, 2023, 23(6):22-33.
[11]	GUO Ziyang, SHI Dawei, JOHANSSON K H, et al. Optimal Linear Cyber-Attack on Remote State Estimation[J]. IEEE Transactions on Control of Network Systems, 2016, 4(1): 4-13.
[12]	DING Derui, HAN Qinglong, XIANG Yang, et al. A Survey on Security Control and Attack Detection for Industrial Cyber-Physical Systems[J]. Neurocomputing, 2018, 275: 1674-1683.
[13]	ZHONG Qishui, YANG Jin, SHI Kaibo, et al. Event-Triggered H∞ Load Frequency Control for Multi-Area Nonlinear Power Systems Based on Non-Fragile Proportional Integral Control Strategy[J]. IEEE Transactions on Intelligent Transportation Systems, 2021, 23(8): 12191-12201.
[14]	TIAN Engang, PENG Chen. Memory-Based Event-Triggering H∞ Load Frequency Control for Power Systems under Deception Attacks[J]. IEEE Transactions on Cybernetics, 2020, 50(11): 4610-4618.
[15]	YANG Hongchenyu, PENG Chen, CAO Zhiru. Attack-Model-Independent Stabilization of Networked Control Systems under a Jump-Like TOD Scheduling Protocol[EB/OL]. (2023-03-11)[2025-02-20]. https://www.sciencedirect.com/science/article/abs/pii/S0005109823001358.
[16]	HU Songlin, YUE Dong, HAN Qinglong, et al. Observer-Based Event-Triggered Control for Networked Linear Systems Subject to Denial-of-Service Attacks[J]. IEEE Transactions on Cybernetics, 2019, 50(5): 1952-1964.
[17]	XIONG Du, ZHANG Chuanke, WAN Xiongbo, et al. Stability and Stabilization of T-S Fuzzy Systems under Sampled-Data Control via a Matrix-Separation-Based Inequality[J]. IEEE Transactions on Fuzzy Systems, 2024, 32(8): 4312-4323.
